UDIMET® Alloy 188

UNS R30188

A cobalt-base alloy with excellent high temperature strength and good oxidation resistance to 2000°F (1093°C). The high chromium level coupled with small additions of lanthanum produce an extremely tenacious and protective scale. The alloy also has good sulfidation resistance and excellent metallurgical stability displayed by its good ductility after prolonged exposure to elevated temperatures. Good fabricability and weldability combine to make the alloy useful in typical gas turbine applications such as combustors, flame holders, liners and transition ducts.

Stock Program

Bars

  • 10.31 mm
  • 12.95 mm
  • 15.88 mm
  • 19.05 mm
  • 25.40 mm
  • 34.93 mm
  • 35.18 mm
  • 44.70 mm
  • 50.80 mm
  • 57.15 mm

Sheets / Plates

  • 0.40 mm
  • 0.50 mm
  • 0.63 mm
  • 0.81 mm
  • 0.90 mm
  • 1.00 mm
  • 1.27 mm
  • 1.40 mm
  • 1.42 mm
  • 1.60 mm
  • 1.80 mm
  • 2.03 mm
  • 2.36 mm
  • 2.54 mm
  • 3.18 mm
  • 4.76 mm
  • 6.35 mm
  • 9.52 mm

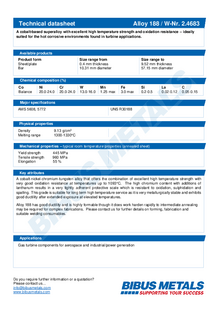

Downloads

Limiting
Co   Balance
Cr   20.00 - 24.00 %
Ni   20.00 - 24.00 %
W   13.00 - 16.00 %
Fe max. 3.00 %
Mn max. 1.25 %
Si   0.20 - 0.50 %
C   0.05 - 0.15 %
C   0.02 - 0.12 %
B max. 0.015 %
Density
g/cm³   9.13
lb/in³   0.330
Recommended Welding Products
Electrode
Filler Metal
